Overview

Social is a full-stack social networking platform built for developers and technical communities — combining a content feed, a bidirectional connection graph, end-to-end encrypted real-time messaging, and a personal notes/file workspace into a single application.

Most social-platform side projects stop at "posts + likes + comments." Social goes further into the systems that actually make a platform feel alive:

The system is built around a scalable feed and social-graph architecture, with a strong emphasis on component reuse, typed API contracts, and clear service-layer boundaries between routes and data access.

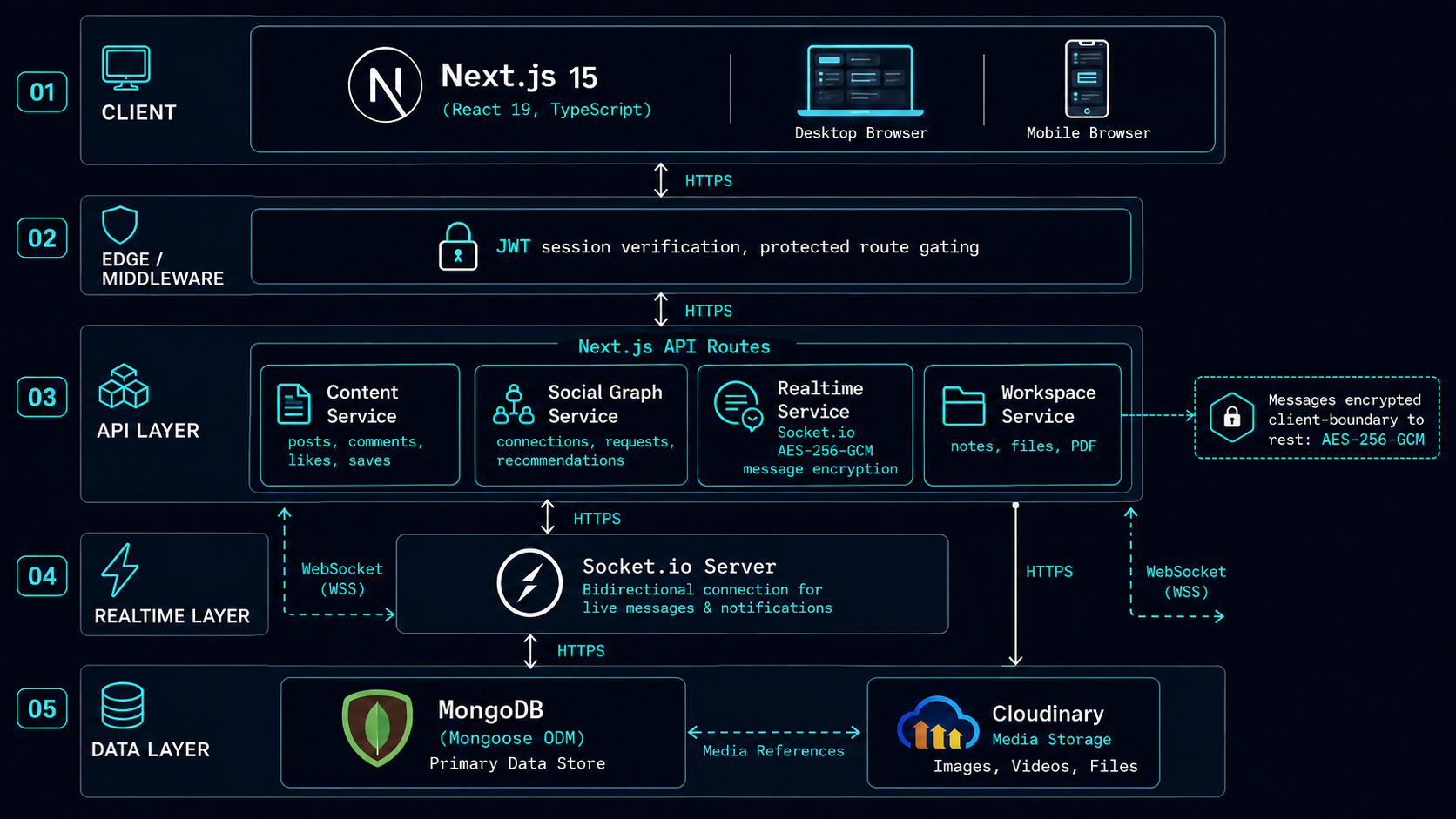

Platform Architecture

Social is structured as a modular full-stack application composed of several system layers.

Authentication Layer

Handles identity and session management using a custom JWT-based authentication system with access and refresh tokens.

Responsibilities:

• User registration and login with secure password hashing
• JWT access and refresh token issuance using HttpOnly cookies
• Session validation and route protection
• Authentication of API routes via server-side JWT verification

Content Management Layer

Responsible for post creation, editing, retrieval, and lifecycle.

Responsibilities:

• Post persistence, pagination, and feed generation
• Like/comment/save/archive state, each independently rate-limited
• Post metadata (media, timestamps, engagement counts)

Real-Time Communication Layer

Manages live, encrypted messaging between users.

Responsibilities:

• Socket.io connection lifecycle (join, message, read-receipt events)
• AES-256-GCM encryption/decryption of message payloads at rest
• Unread-count tracking and read-state synchronization across sessions

Social Graph Layer

Manages connections and discovery between users.

Responsibilities:

• Follow requests: send / accept / reject / cancel / unfollow
• Bidirectional connection state with cached request lists
• An interactive 3D visualization of a user's connection graph
• Lightweight recommendation logic for "people you may know"

Personal Workspace Layer

A private, non-social space for the user's own content.

Responsibilities:

• Folder-organized notes and file uploads

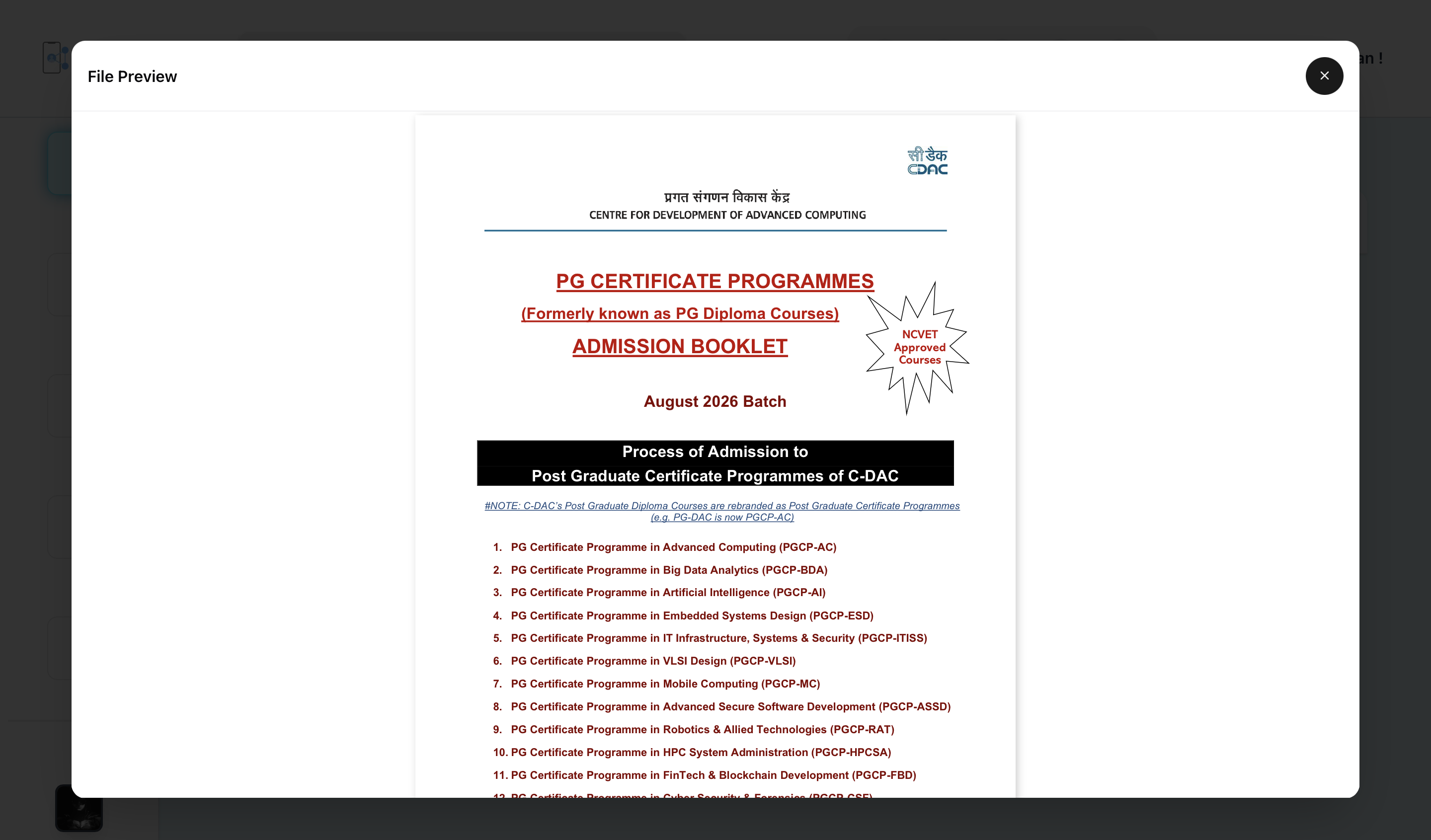

• In-app PDF rendering for uploaded documents
• Isolated from the public feed — visible only to its owner

Media Storage Layer

Handles file uploads and cloud asset delivery via Cloudinary.

Responsibilities:

• Media upload processing and optimization
• Secure delivery URLs and CDN distribution

Database Layer

Handles persistent application state via MongoDB / Mongoose.

Stores: user profiles, posts, comments, connections, notes, chat messages, notifications, stories, and usage records.

Core Features

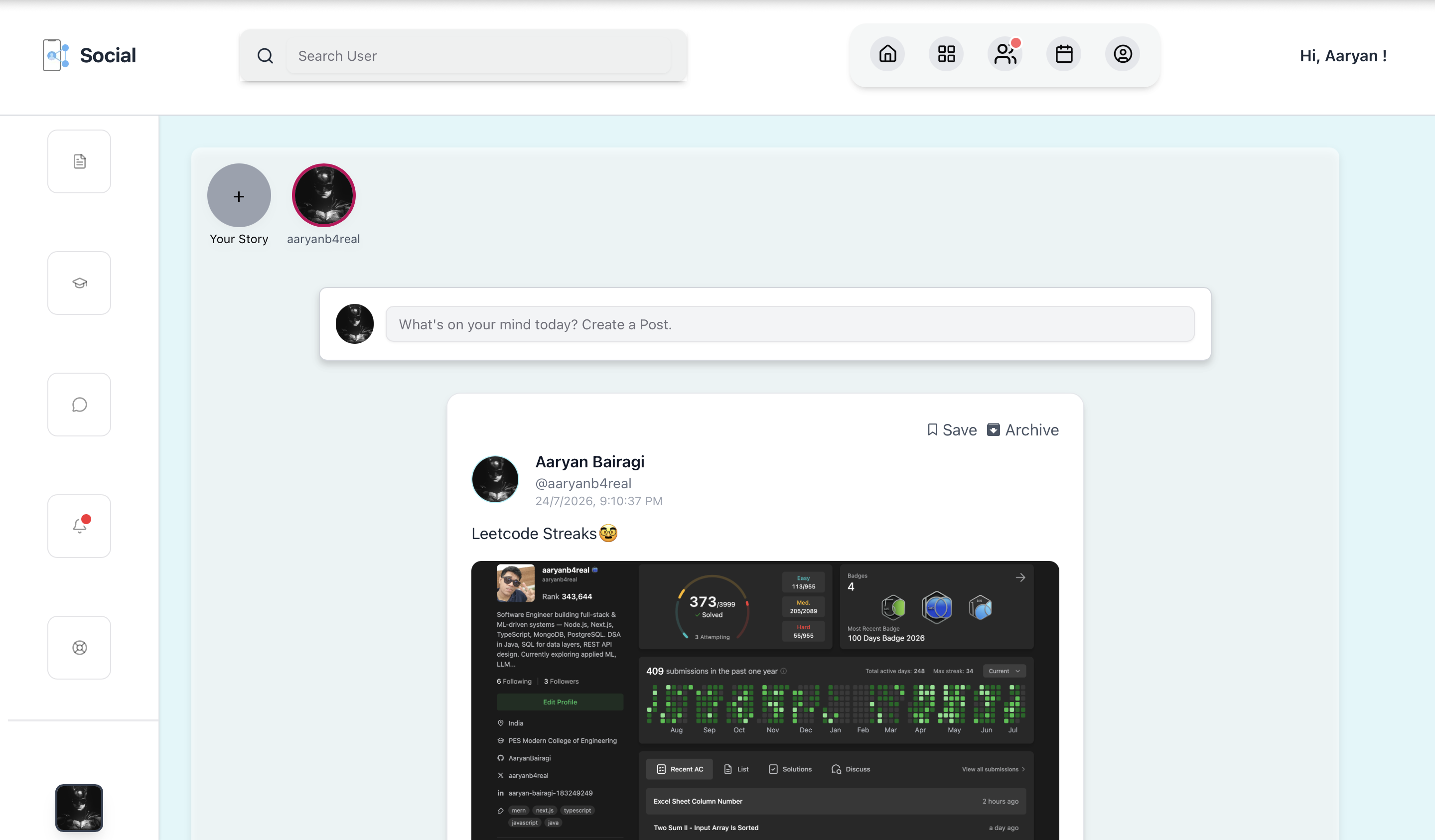

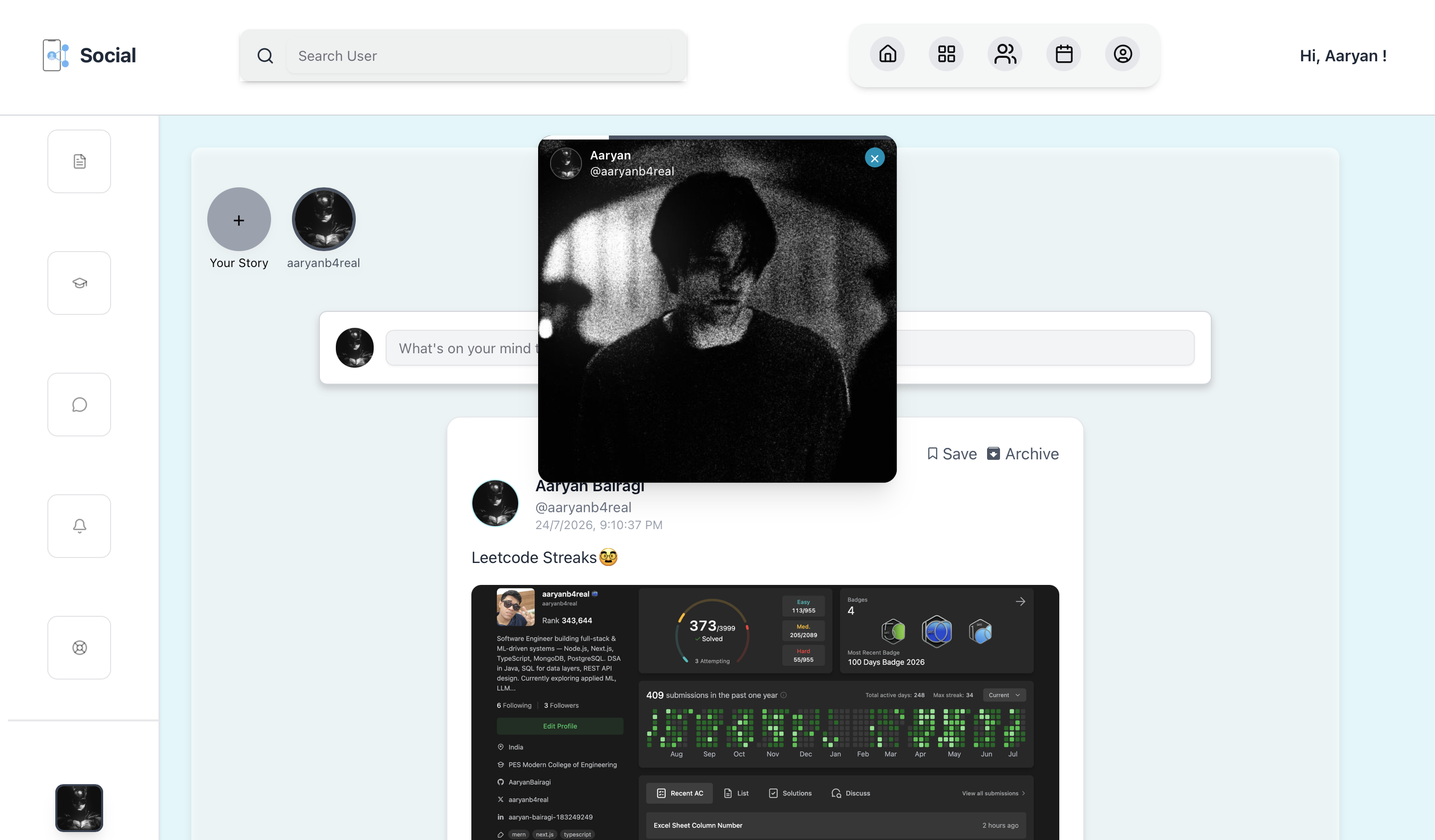

Dynamic Social Feed

Text and media posts with likes, threaded comments, saves, and archiving — each action independently rate-limited to prevent abuse.

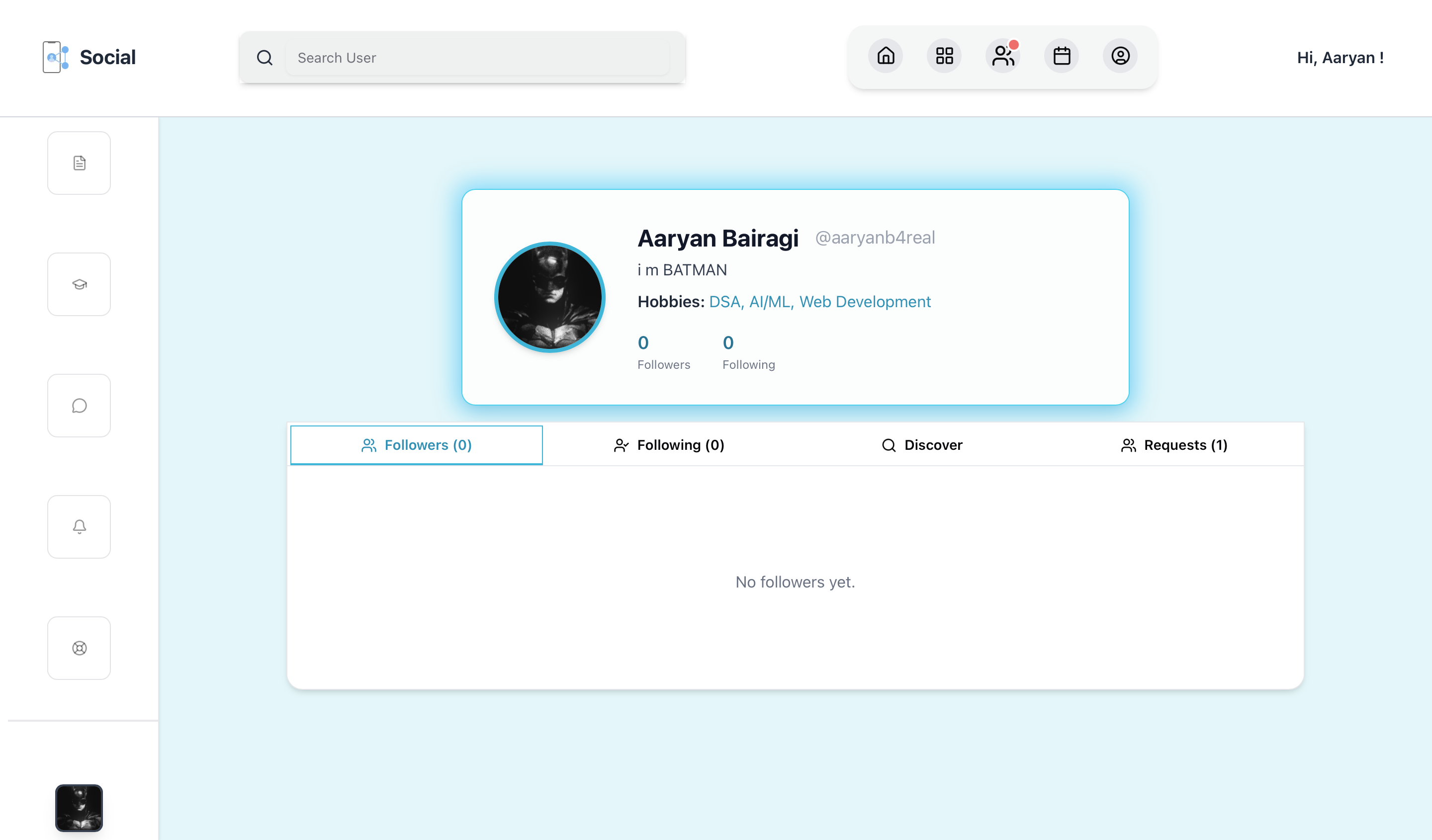

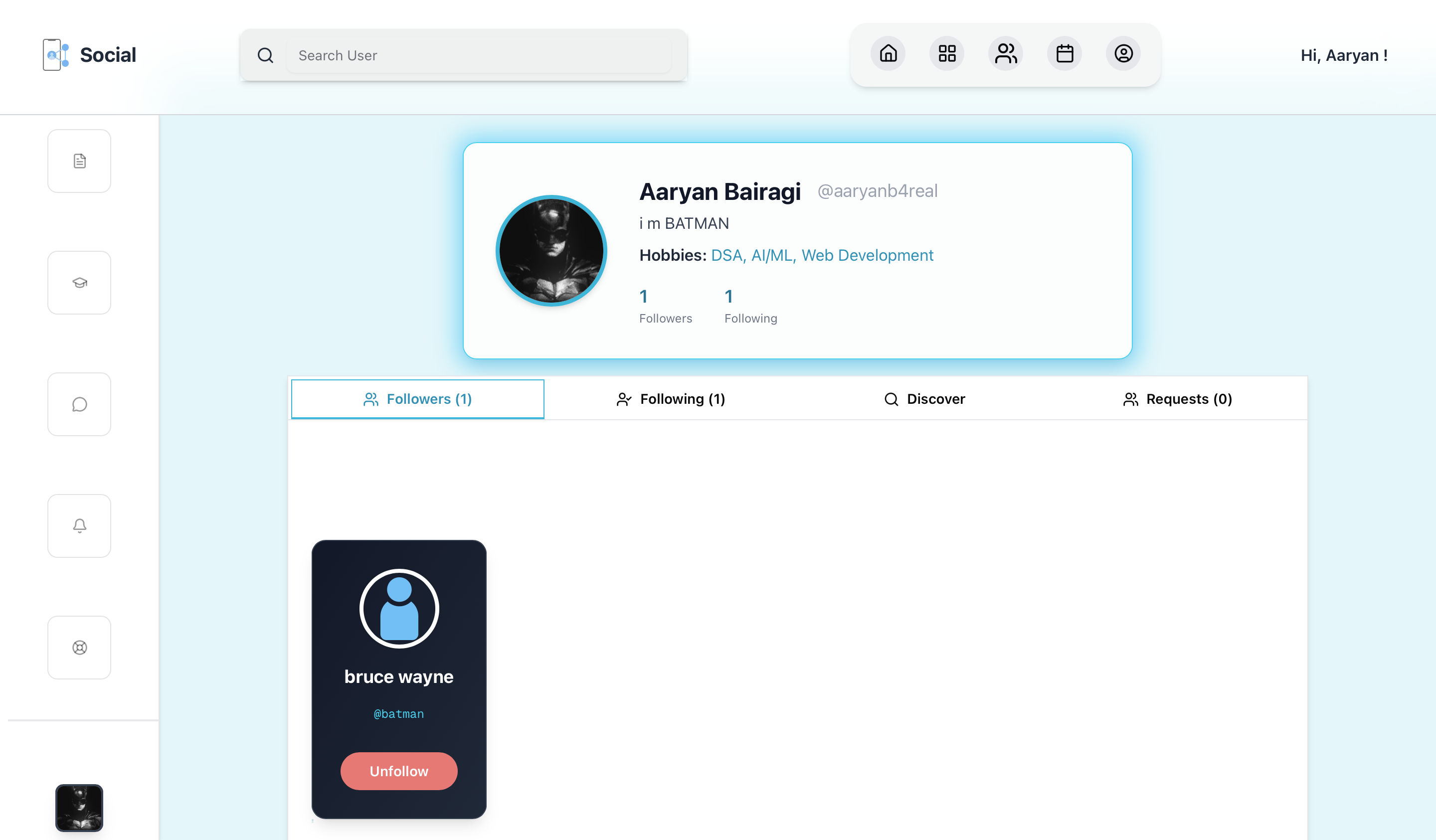

Connection System with 3D Visualization

A traditional follow/request/accept model paired with an interactive 3D globe rendering of a user's connection graph, built with three-globe and @react-three/fiber.

Encrypted Real-Time Messaging

Socket.io-powered 1:1 chat with AES-256-GCM encryption applied per message before persistence, plus read-receipts and live unread counts.

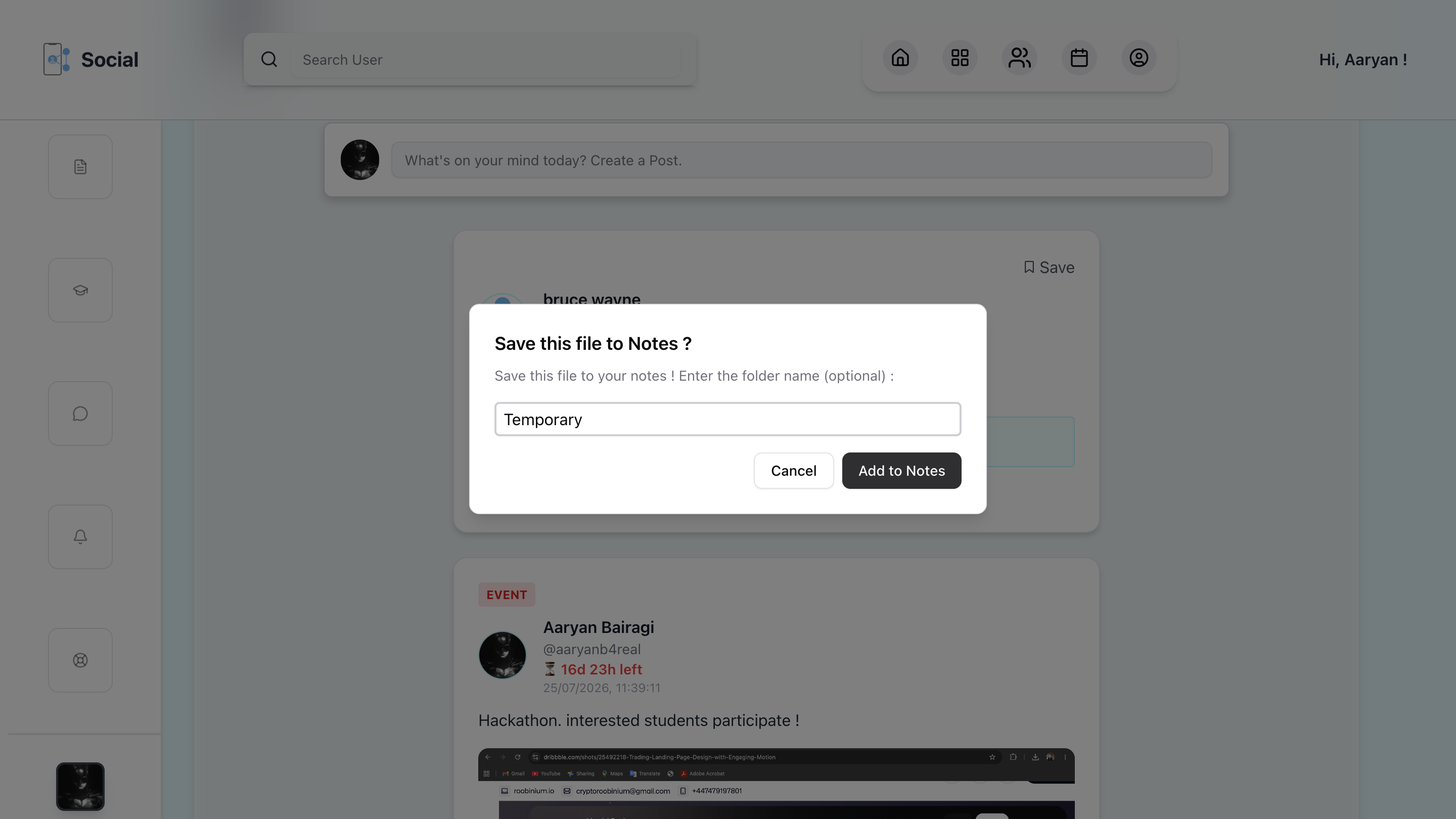

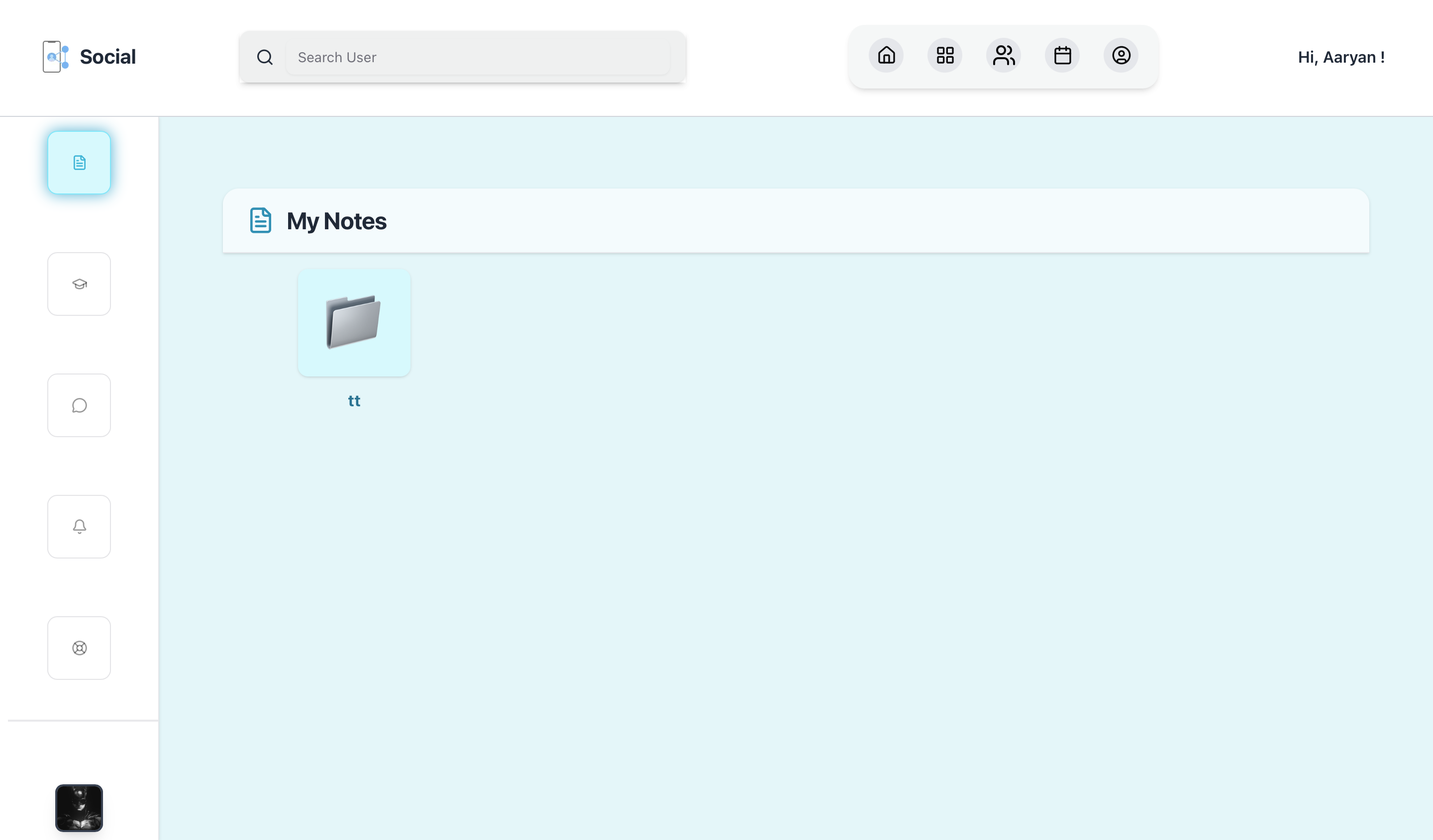

Personal Notes & File Workspace

A folder-based notes system with file uploads and an embedded PDF viewer — a private workspace layered on top of the social platform rather than a separate feature.

Notifications

Event-driven notifications for follow requests, accepted connections, and engagement, with a read/unread state.

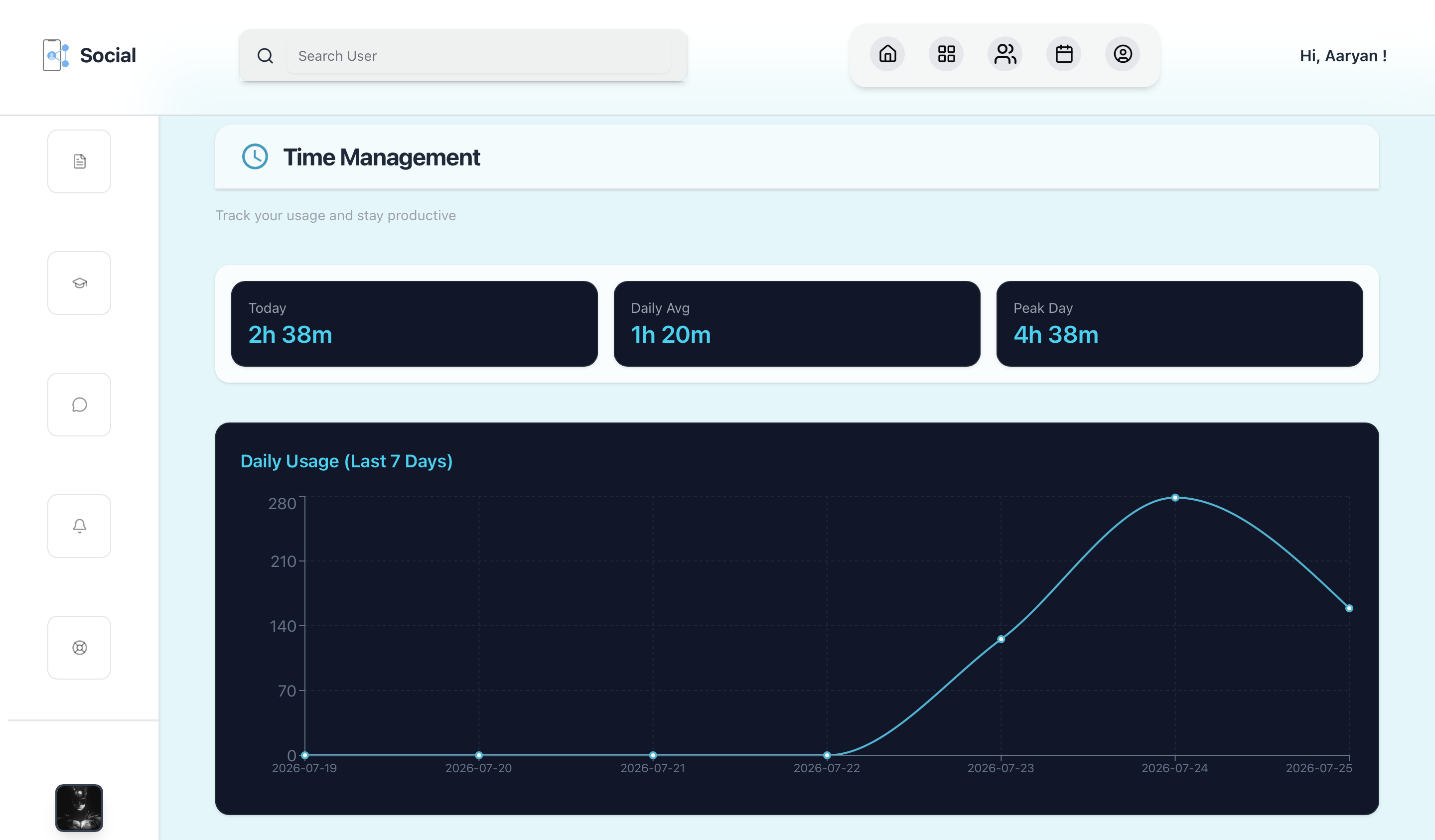

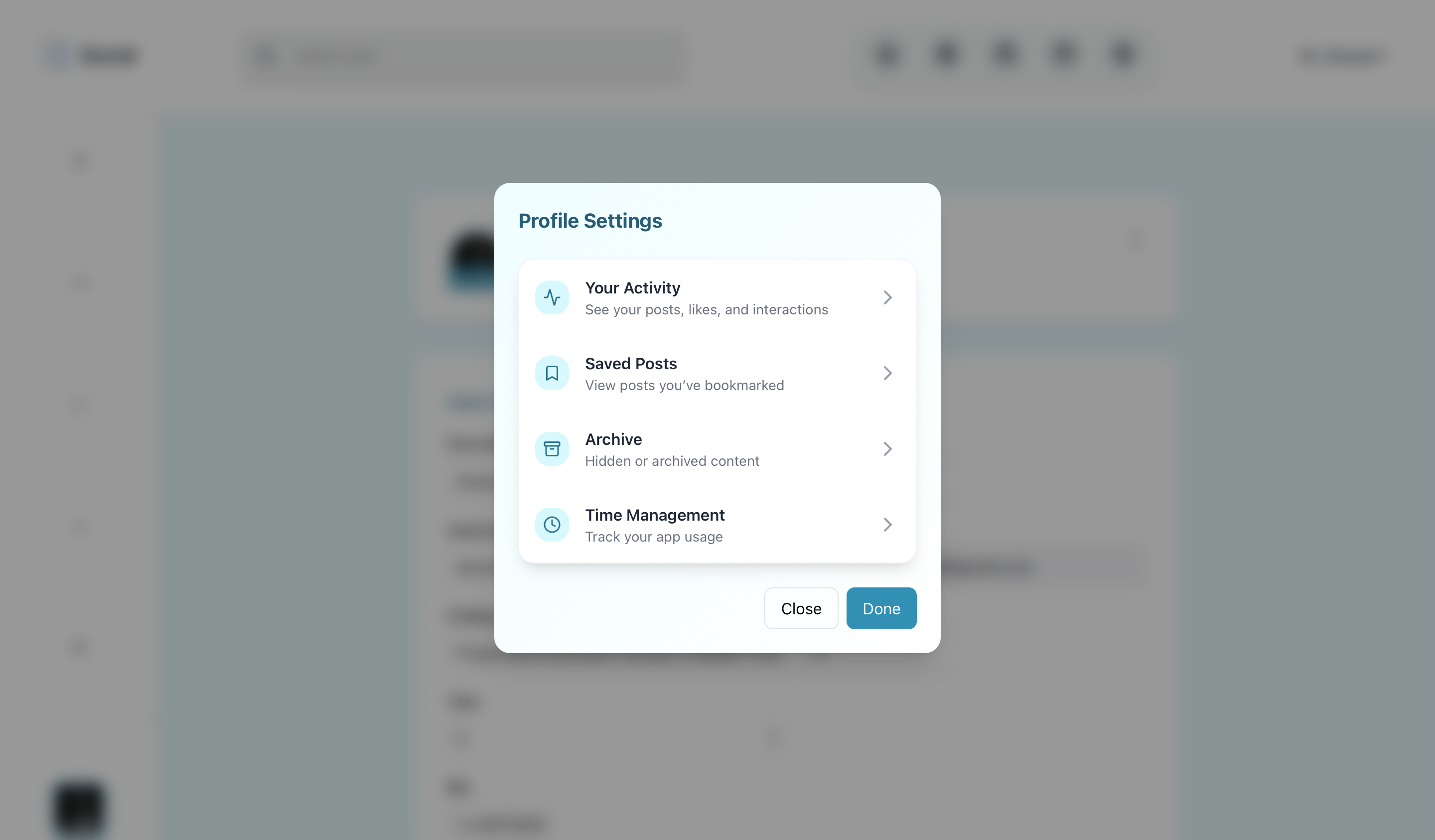

Usage Analytics

Client-side session tracking (via navigator.sendBeacon on unload) feeding daily and weekly time-spent charts, rendered with recharts.

Recommendations

A lightweight "suggested connections" engine surfaced on the dashboard.

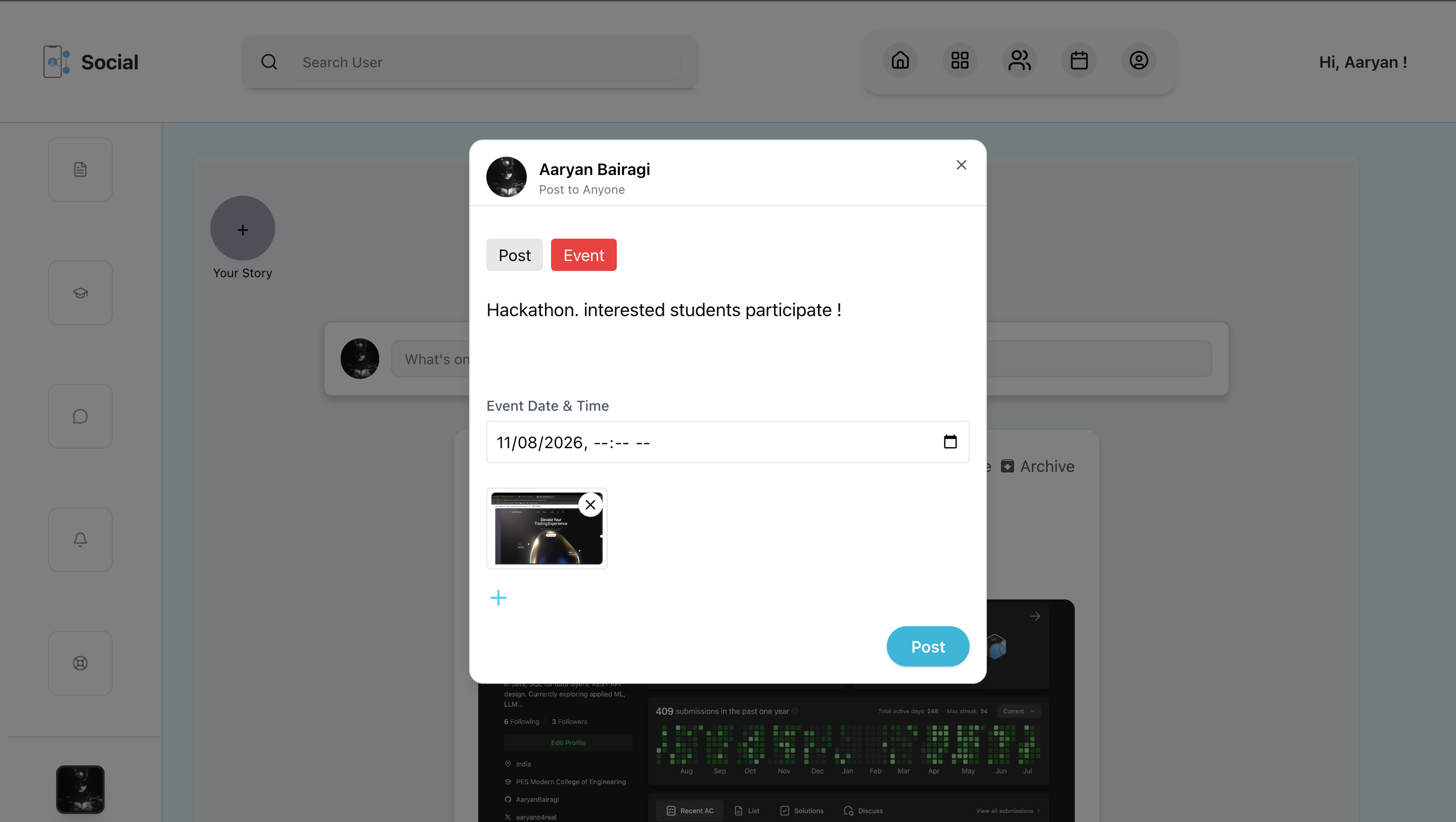

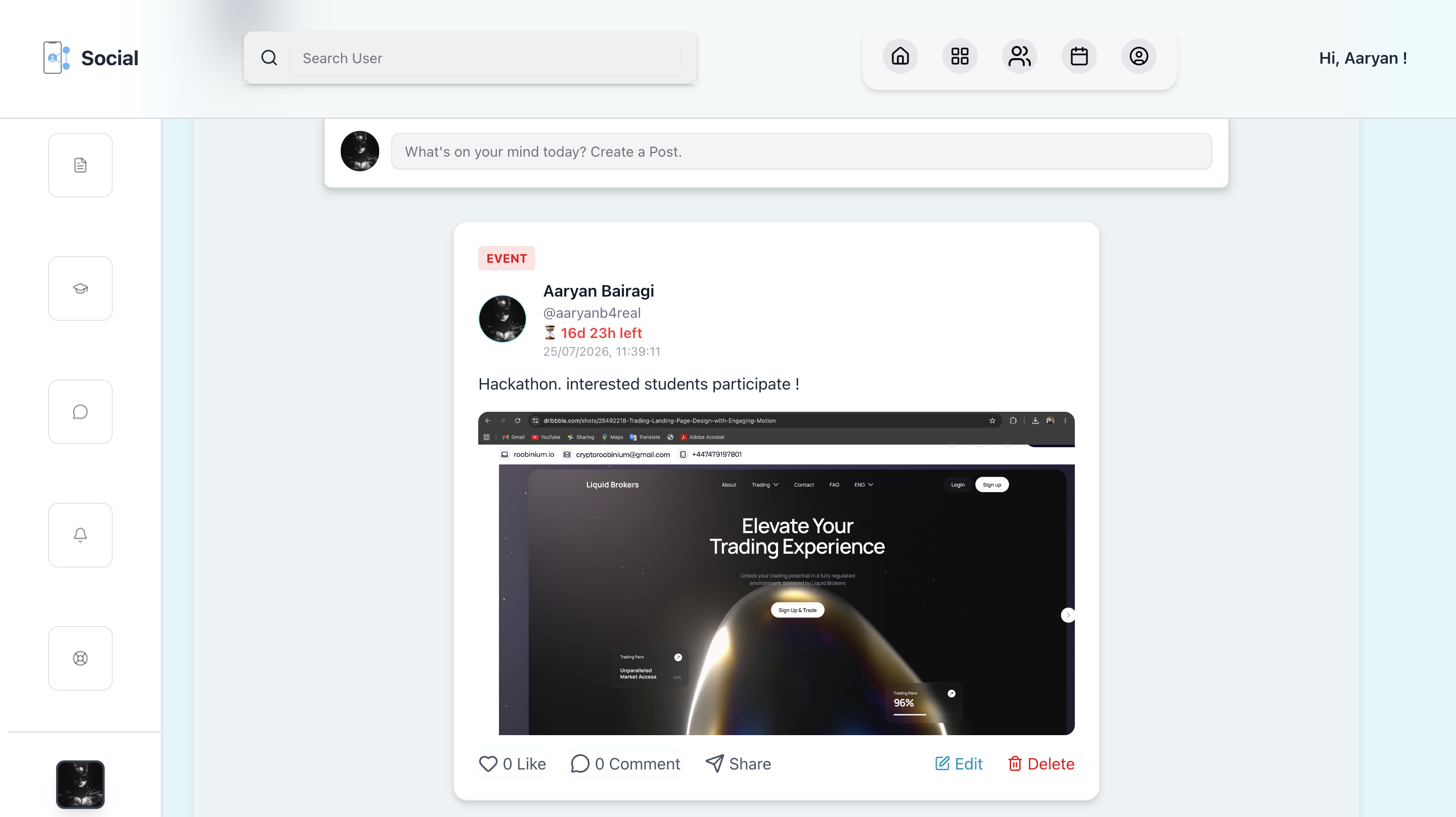

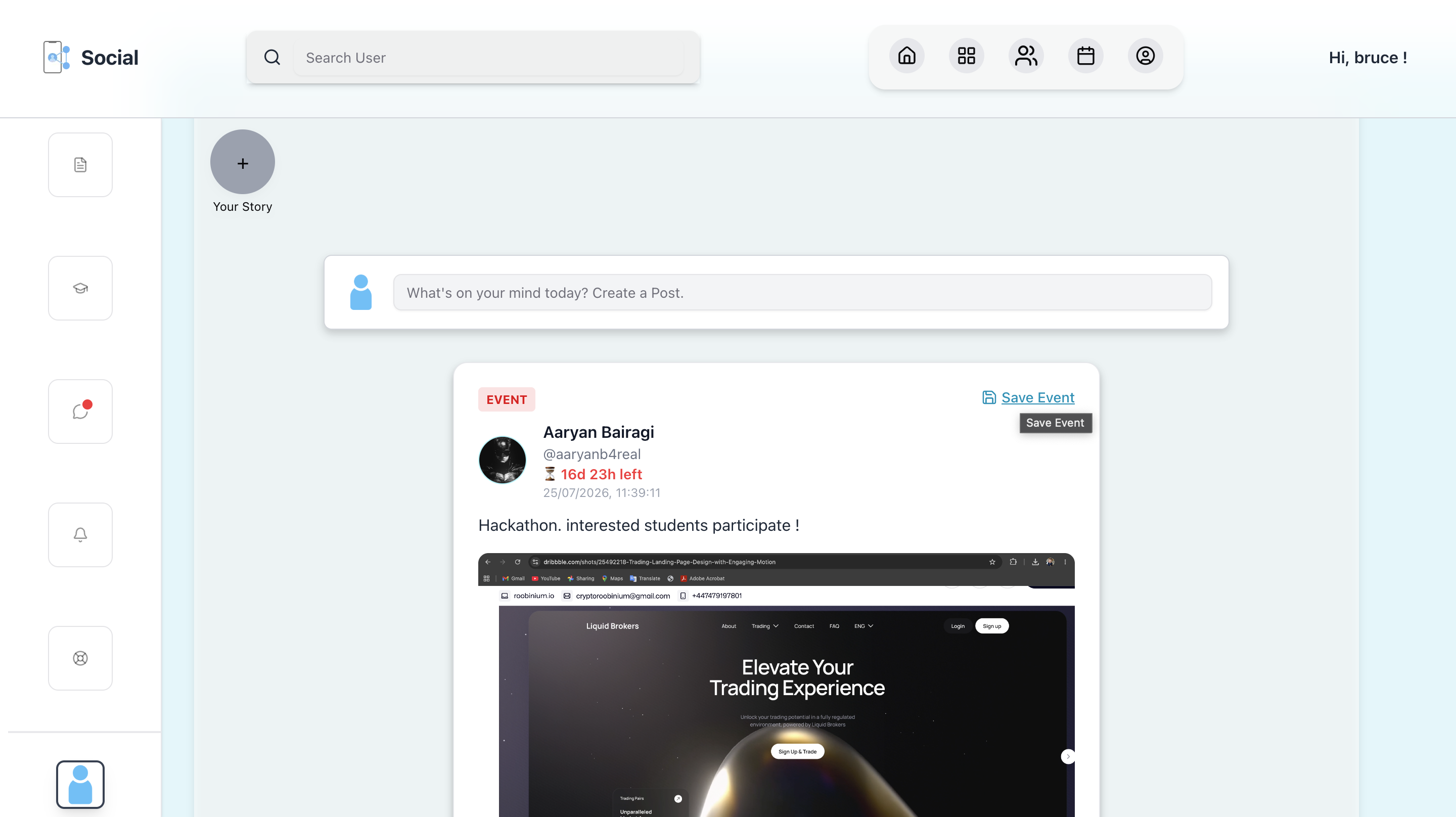

Events

User-created events with save/RSVP-style interactions.

Real-Time Messaging & Encryption

Message content is encrypted with AES-256-GCM before it's written to MongoDB — the database never holds plaintext message bodies. Socket.io handles delivery and presence; encryption/decryption happens at the application boundary, keyed off a server-held secret (CHAT_ENCRYPTION_KEY, a 32-byte key never exposed to the client).

Client A ──(plaintext)──▶ API/Socket layer ──AES-256-GCM encrypt──▶ MongoDB
MongoDB ──ciphertext──▶ API/Socket layer ──AES-256-GCM decrypt──▶ Client B

Database Schema

User ──────────┬──────────── Post ─────────────── Comment
│ firstName     │            │ user → User        │ post → Post
│ lastName      │            │ content             │ user → User
│ userId        │            │ media               │ textMessage
│ email         │            │ likes[] → User
│ password      │            │ savedPostsBy[]
│ bio           │            │ isArchived
│ interests[]   │
│ socialLinks   │            Connection             Notification
│ connections[] │──────────▶ │ requester → User     │ userId → User
│ sentRequests[]│            │ recipient → User     │ actorId → User
│ receivedReq[] │            │ status                │ type

Chat                          Note                    Usage
│ sender → User                │ user → User          │ user → User
│ recipient → User             │ fileUrl               │ date
│ ciphertext (AES-256-GCM)     │ description           │ timeSpent
│ iv, authTag                  │ folder
│ read (bool)

Story                          Contact
│ user → User                  │ name, email, message
│ mediaUrl
│ expiresAt

Technology Stack

Frontend

Backend

Database & Storage

Infrastructure

• In-memory rate limiting (per user:action key) on write-heavy routes (likes, connections, notes)
• In-memory request caching for hot read paths (e.g. pending connection requests)
• Vercel deployment target

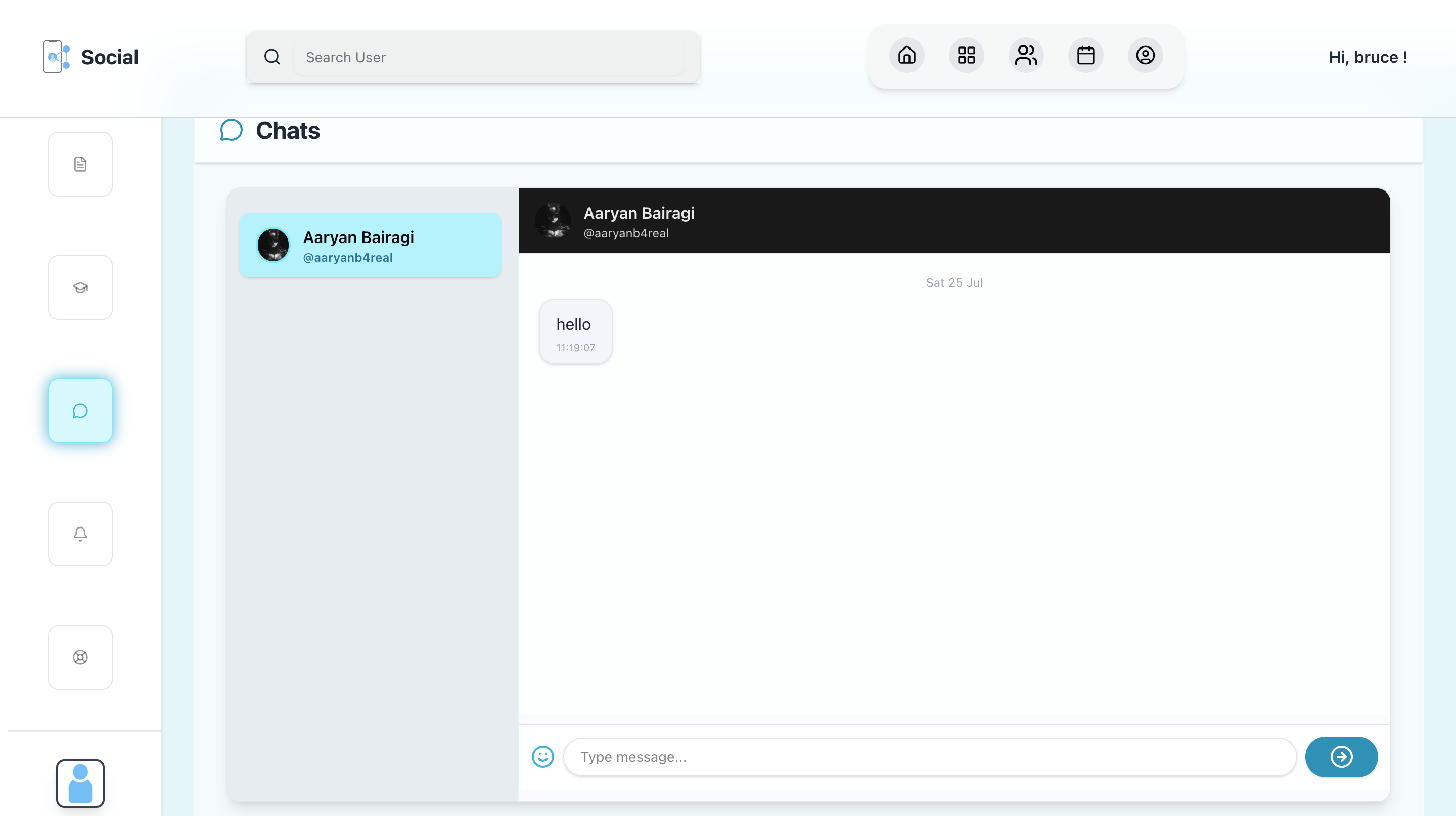

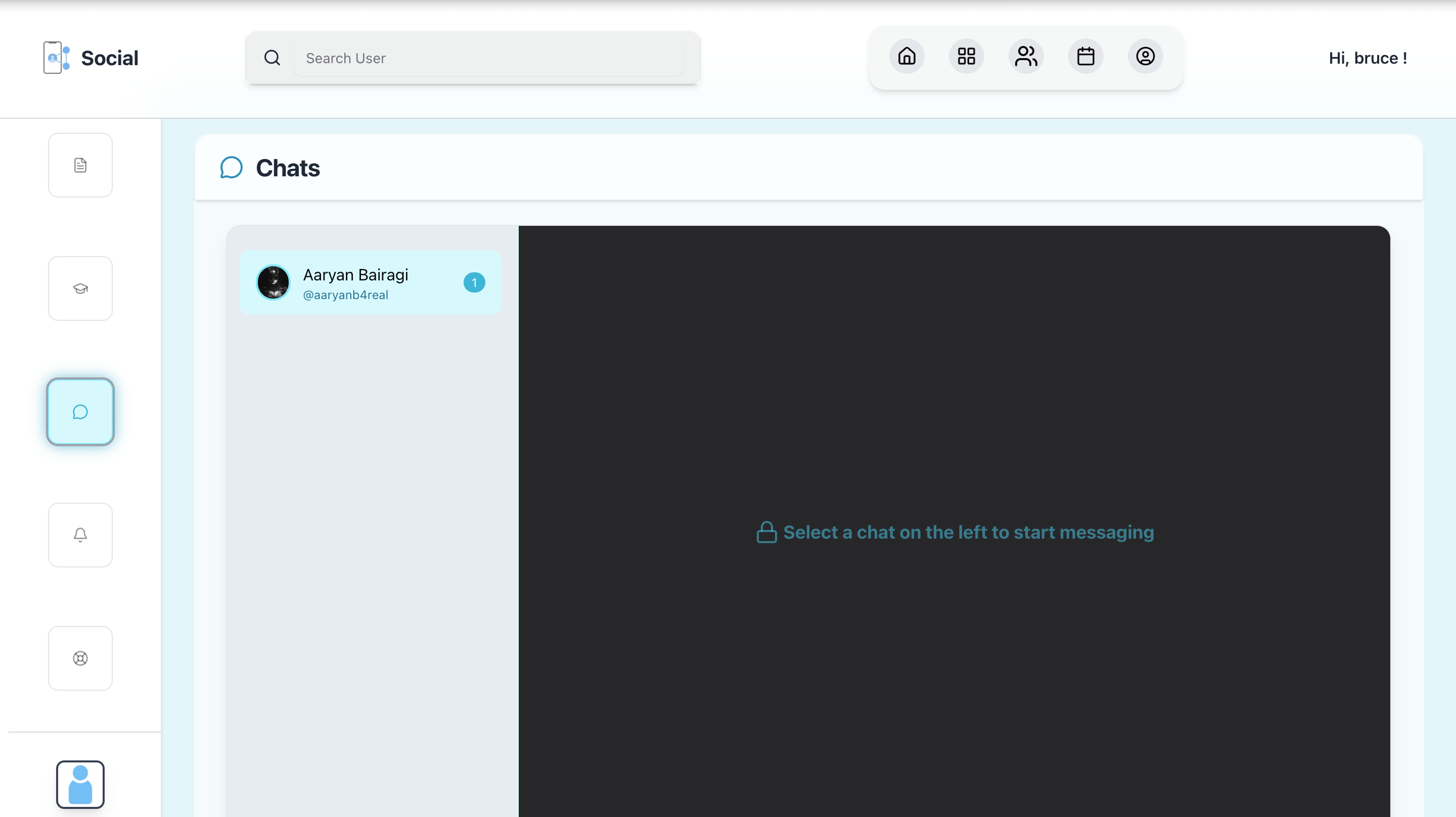

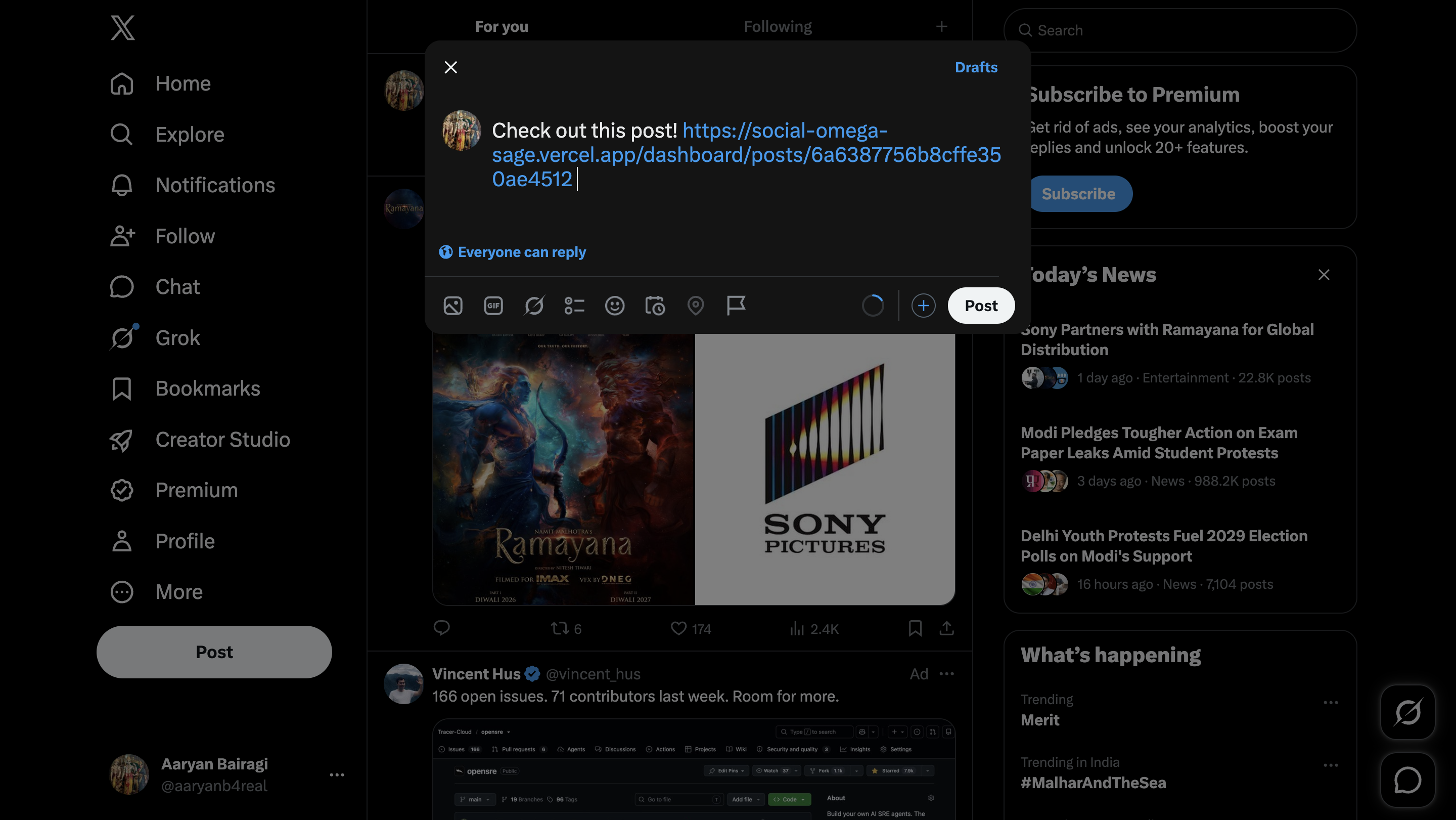

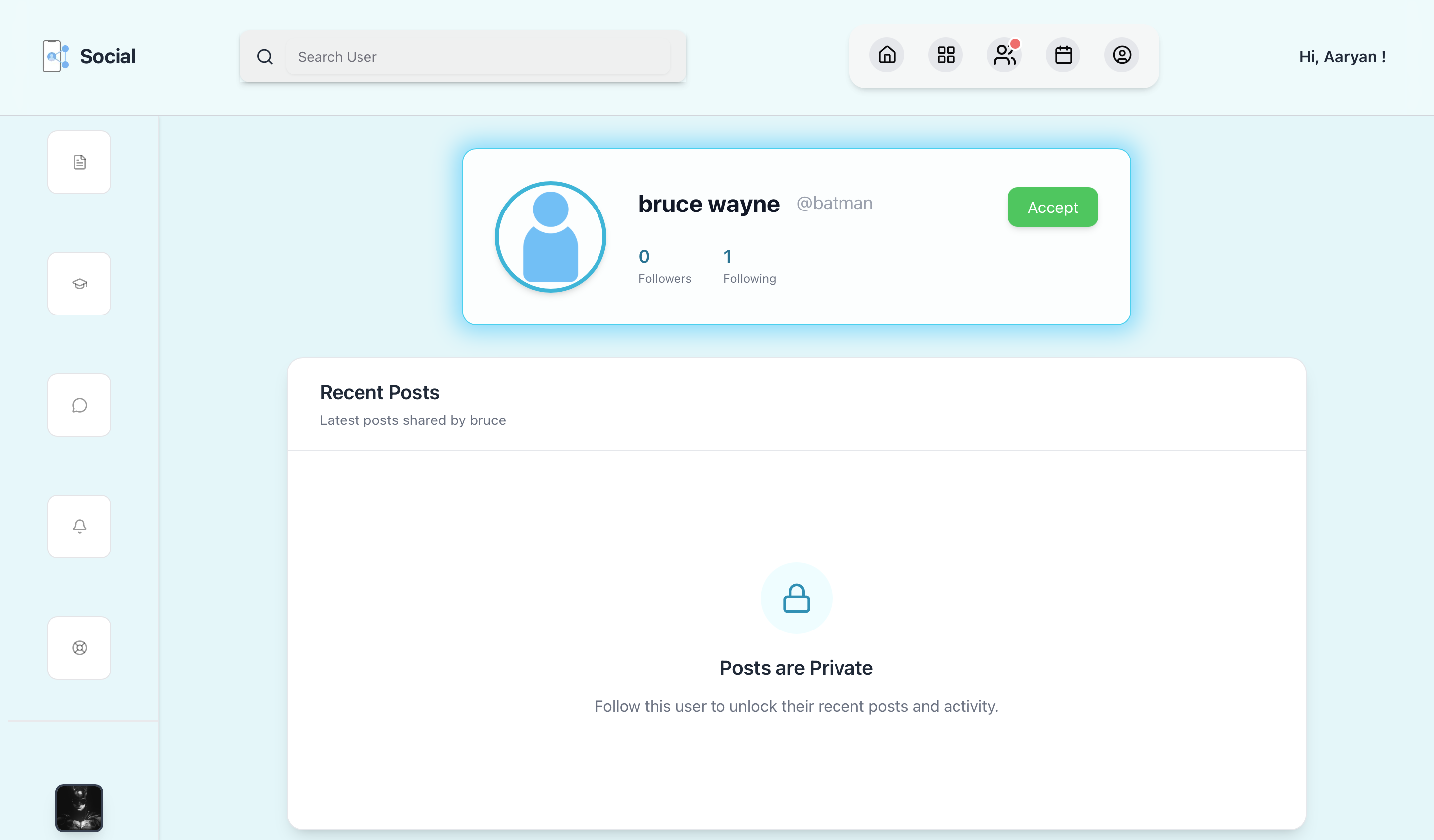

Project Screenshots

1	2
3	4
5	6
7	8
9	10
11	12
13	14
15	16
17	18
19

Local Development Setup

Clone Repository

git clone https://github.com/AaryanBairagi/social.git
cd social

Install Dependencies

npm install

Start Development Server

npm run dev

Visit http://localhost:3000.

Environment Variables

Create a .env.local file:

# Authentication
JWT_ACCESS_SECRET=
JWT_REFRESH_SECRET=

# Database
MONGO_URI=

# Cloudinary
NEXT_PUBLIC_CLOUDINARY_CLOUD_NAME=
CLOUDINARY_API_KEY=
CLOUDINARY_API_SECRET=

# Messaging encryption (64-char hex string = 32 bytes)
CHAT_ENCRYPTION_KEY=

Current Status & Known Tradeoffs

Built as a demonstration of end-to-end social-platform engineering — real-time systems, encryption, social-graph modeling, and 3D visualization — rather than a production-hardened deployment. In the interest of an honest project writeup:

Roadmap

• Authenticate Socket.io connections using JWT handshake verification
• Move rate limiting and caching to Redis for multi-instance correctness
• Add automated tests around auth, messaging, and the connection request state machine
• Direct message read-receipts UI polish
• Post bookmarking collections
• Content recommendation ranking beyond simple suggestion logic
• Progressive Web App support

Author

Built by Aaryan Bairagi

Social was built to explore real-time system design, applied cryptography, social-graph data modeling, and 3D data visualization within a modern full-stack application.
